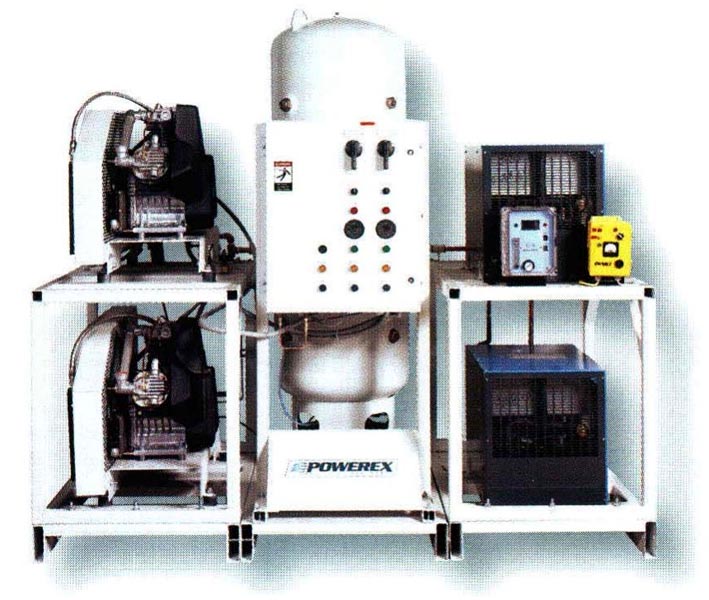

• Medical Air Compressors
  • Oilless Clean Dry Air
  • Meets NFPA 99 Carbon Monoxide Monitor
  • Dew Point Monitor
  • Corrosion Resistant ASME Receiver Tank
  • UL Listed NEMA 12 Medical Control Panel
* Consult factory for triplex, quadplex, or larger systems
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Item Name

Shipping Weight

Speed

Phase

Power of Each Motor

Number of Motors

Voltage

Full Load Motor Current

Tank

Flow at 100 Pound Per Square Inch (psi) Pressure

Flow at 50 psig

Web Price

Add To Cart/Request Quote
N/A 5HP Medical Oilless Reciprocating Duplex Air Compressor N/A 1288 Pound N/A 870 rpm N/A 3 N/A 5 hp N/A 2 N/A 208 V230 V460 V N/A 8.2 A16.5 A17.4 A N/A 120 gal N/A 33.4 ft³/min N/A 36.2 ft³/min QUOTE Add To Cart
Request Quote
N/A 7.5HP Medical Oilless Reciprocating Duplex Air Compressor N/A 1340 Pound N/A 840 rpm N/A 3 N/A 7.5 hp N/A 2 N/A 208 V230 V460 V N/A 11 A22 A23.4 A N/A 120 gal N/A 52.2 ft³/min N/A 55.1 ft³/min QUOTE Add To Cart
Request Quote
N/A 10HP Medical Oilless Reciprocating Duplex Air Compressor N/A 1510 Pound N/A 1070 rpm N/A 3 N/A 10 hp N/A 2 N/A 208 V230 V460 V N/A 16.5 A33 A35 A N/A 200 gal N/A 70 ft³/min N/A 76.3 ft³/min QUOTE Add To Cart
Request Quote
N/A 15HP Medical Oilless Reciprocating Duplex Air Compressor N/A 1630 Pound N/A 1250 rpm N/A 3 N/A 15 hp N/A 2 N/A 208 V230 V460 V N/A 20.7 A41.4 A43 A N/A 200 gal N/A 108.4 ft³/min N/A 114.1 ft³/min QUOTE Add To Cart
Request Quote
N/A 5HP Medical Oilless ReciprocatingTriplex Air Compressor N/A 1838 Pound N/A 870 rpm N/A 3 N/A 5 hp N/A 3 N/A 208 V230 V460 V N/A 8.2 A16.5 A17.4 A N/A 200 gal N/A 50.1 ft³/min N/A 54.3 ft³/min QUOTE Add To Cart
Request Quote
N/A 7.5HP Medical Oilless Reciprocating Triplex Air Compressor N/A 1980 Pound N/A 840 rpm N/A 3 N/A 7.5 hp N/A 3 N/A 208 V230 V460 V N/A 11 A22 A23.4 A N/A 200 gal N/A 78.8 ft³/min N/A 85.2 ft³/min QUOTE Add To Cart
Request Quote
N/A 10HP Medical Oilless Reciprocating Triplex Air Compressor N/A 2160 Pound N/A 1070 rpm N/A 3 N/A 10 hp N/A 3 N/A 208 V230 V460 V N/A 16.5 A33 A35 A N/A 240 gal N/A 105 ft³/min N/A 111.6 ft³/min QUOTE Add To Cart
Request Quote
N/A 15HP Medical Oilless Reciprocating Triplex Air Compressor N/A 2280 Pound N/A 1250 rpm N/A 3 N/A 15 hp N/A 3 N/A 208 V230 V460 V N/A 20.7 A41.4 A43 A N/A 240 gal N/A 162.6 ft³/min N/A 171 ft³/min QUOTE Add To Cart
Request Quote
N/A 5HP Medical Oilless Reciprocating Quadplex Air Compressor N/A 2388 Pound N/A 870 rpm N/A 3 N/A 5 hp N/A 4 N/A 208 V230 V460 V N/A 8.2 A16.5 A17.4 A N/A 240 gal N/A 66.8 ft³/min N/A 72.4 ft³/min QUOTE Add To Cart
Request Quote
N/A 7.5HP Medical Oilless Reciprocating Quadplex Air Compressor N/A 2490 Pound N/A 840 rpm N/A 3 N/A 7.5 hp N/A 4 N/A 208 V230 V460 V N/A 11 A22 A23.4 A N/A 240 gal N/A 104.4 ft³/min N/A 109.6 ft³/min QUOTE Add To Cart
Request Quote
N/A 10HP Medical Oilless Reciprocating Quadplex Air Compressor N/A 2640 Pound N/A 1070 rpm N/A 3 N/A 10 hp N/A 4 N/A 208 V230 V460 V N/A 16.5 A33 A35 A N/A 240 gal N/A 140 ft³/min N/A 147 ft³/min QUOTE Add To Cart
Request Quote
N/A 15HP Medical Oilless Reciprocating Quadplex Air Compressor N/A 2735 Pound N/A 1250 rpm N/A 3 N/A 15 hp N/A 4 N/A 208 V230 V460 V N/A 20.7 A41.4 A43 A N/A 240 gal N/A 216.8 ft³/min N/A 227.6 ft³/min QUOTE Add To Cart
Request Quote
