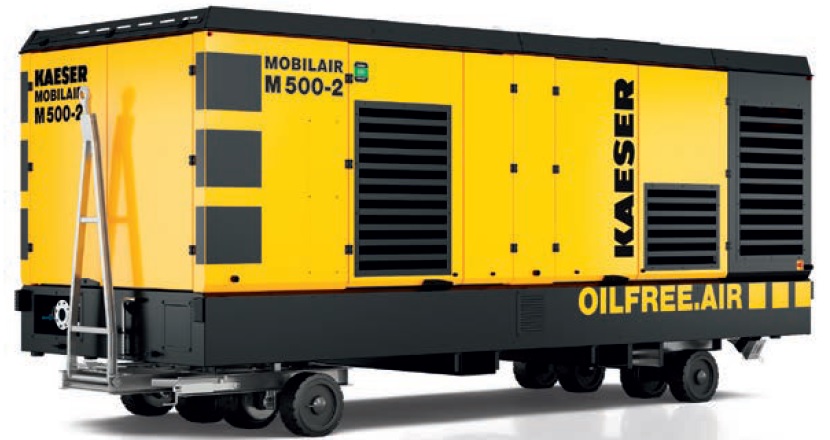

The two-stage, oil-free M500-2 is an ultra-reliable source of rental air for site work. It is also a perfect fit for backup air for manufacturing and process applications during plant maintenance periods, or to provide temporary auxiliary air during peak production periods.
Compressor Specifications
Free Air Delivery at 100 Pound Per Square Inch Gauge (psig) |
N/A 1600 ft³/min |
Free Air Delivery at 125 Pound Per Square Inch Gauge (psig) |
N/A 1550 ft³/min |
Free Air Delivery at 135 Pound Per Square Inch Gauge (psig) |
N/A 1530 ft³/min |
Free Air Delivery at 140 Pound Per Square Inch Gauge (psig) |
N/A 1500 ft³/min |
Free Air Delivery at 150 Pound Per Square Inch Gauge (psig) |
N/A 1340 ft³/min |
Diesel Engine
Make |
N/A Caterpillar C 18 |
Power at Full Load |
N/A 600 hp |
Full Load Speed |
N/A 1900 rpm |
Off Load Running Speed |
N/A 1250 rpm |
Package
Full Tank Capacity |
N/A 248 gal |
AdBlue Capacity |
N/A 12 gal |
Weight |
N/A 26,235 lb |
Outlets |
N/A 1 x 1 National Pipe Thread (NPT) 1 x 3 in. Flange |
Features
Features |
N/A
|
Controls
Controls |
N/A
|
Maintenance
Maintenance |
N/A
|
Operation
Operation |
N/A
|
Transport and Safety
Transport and Safety |
N/A
|
Additional Information
N/A
Powered by the dependable 600 hp Caterpillar C18 diesel engine, the M500-2 is engineered for fuel efficiency and ease of operation. With a full load fuel consumption of 21 gal/hr and a 248 gallon fuel tank, M500-2 delivers up to 1600 cfm continuously for up to 12 hours. Run time can be extended using the external fuel connection (standard). |
-
1 Length without tow bar
Sound level maximum is 76 db(A) at 23 feet
