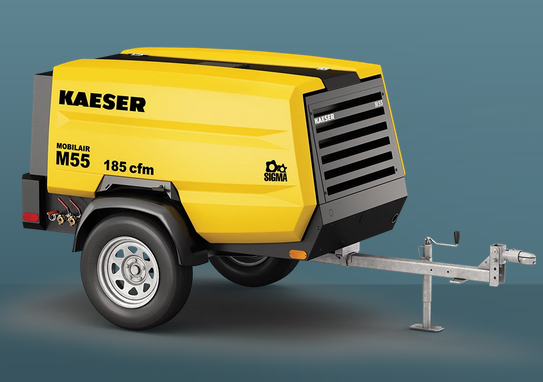

M55PE Mobilair Compressor

Kaeser's new M55 portable air compressor produces 185 cfm at 100 psig and features two large gull-wing doors made of roto-molded polyethylene (PE). These allow quick access to all components for easy servicing and reduced noise levels.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Brands

 N/A Kaeser Compressors

Model

 N/A M55PE
Free Air Delivery at 100 Pound Per Square Inch Gauge (psig) Pressure1 N/A 185 ft³/min

Maximum Sound Level at 23 Feet (ft)

 N/A 76 dBA

Flow Rate

 N/A 185 ft³/min

Working Pressure

 N/A 125 psig

Warranty

 N/A 5 years

Diesel Engine

Make

 N/A Kubota D1803CR-T Tier 4 Final

Power at Full Load

 N/A 43 hp

Full Load Speed

 N/A 2300 to 2700 rpm

Off Load Running Speed

 N/A 2100 rpm

Package

Fuel Tank Capacity

 N/A 21 gal

Outlets

 N/A 1 x 1 in2 x 3/4 in

Weight

 N/A 1920 lb

Dimensions

Length2 N/A 113 in

Width

 N/A 61 in

Height

 N/A 58 in

Standard Features

Standard Features

 N/A
  • Adjustable up to 125 psig
  • Energy efficient Sigma Profile airend produces more air with less horsepower.
  • Heavy-duty 3-cylinder Kubota diesel engine meets Tier 4 Final EPA emissions standards.
  • Sigma Control Smart electronic controller within the eye-level, rear side instrument panel with protective metal cover.
  • Extra-large 21 gallon fuel tank for up to 8 continuous hours of operation.
  • High capacity cold start battery ensures reliable operation.
  • Exclusive anti-frost valve maintains optimum operating temperature and prevents tool freeze up.
  • 15" wheels for higher ground clearance and on/off road maneuverability and site handling.
  • Lifting eye for easy transport and transfer.
  • Rigid, height adjustable tow bar.
  • Heavy-duty bumpers
  • LED lighting kit
  • Anti-frost valve

Optional Features

Optional Features

 N/A
  • 145 psig model
  • Five year airend warranty
  • Aftercooler package

Advantages

Advantages

 N/A
  • All weather operation
  • Superior fuel economy
  • Longer run time before re-fueling
  • Scratch/dent resistance polyethylene cover
  • Gull wing doors for easy service access
  • PM reminders and service history
  • Excellent on/off road handling and safety
  • Easy pressure adjustment
  • Low noise

Additional Information

N/A Low operating costs
The combination of our Sigma Profile airend and the proven Kubota Tier 4 Final diesel engine delivers superior fuel economy and reliability. Add in our large (21 gal) fuel tank and the M55PE is ready for full shift run time - up to 8 continuous hours without refueling.

Safe road and site handling
On road or off, the M55PE offers superior handling with 15” wheels for higher ground clearance and a rigid tow bar with adjustable hitch height. High visibility, low energy LED lighting and heavy duty bumpers promote safety and protection. A convenient lifting eye aids in truck loading/unloading as well as in the service shop.

All weather reliability
The M55PE features a high efficiency cooling system for operations in high heat conditions (up to 113°F). The high capacity cold-start battery ensures starts in cold weather and our exclusive anti-frost valve maintains optimal air temperature to prevent tool freeze up.

Sigma Control Smart
The on-board controller ensures reliable and efficient operations with touch button control. Pressure adjustments are simple. Maintenance reminders and the operating/service history alerts your service team to any required service.

Optional 5 year warranty
To protect your investment, all of our Mobilair compressors are available with an optional 5 year warranty on the compressor airend.

Note

Note

 N/A Specifications subject to change without notice.
  • 1 145 psig model available
  • 2 Length includes tow bar.
