  • Oil free
  • Maintenance free
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Voltage

 N/A 208-230 V460 V

Speed

 N/A 1200 rpm

Power

 N/A 10 hp

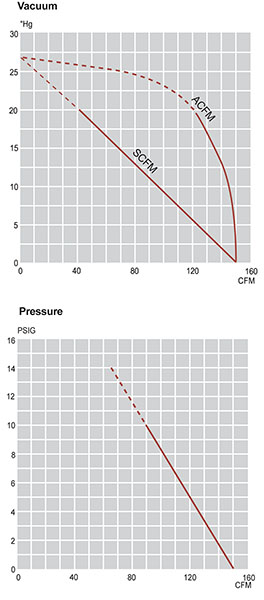

Air Flow

 N/A 150 ft³/min

Maximum Pressure

 N/A 14 psig

Weight

 N/A 237 kg522 lb

Features

N/A

  • Compact light-weight design
  • Environmentally friendly oil-free technology
  • Operates quietly at a maximum 70 dB(A)
  • Maintenance free design
  • Cooler running outboard bearings increase service life
  • Built-in particulate filters and silencers
  • Handles vacuum and/or pressure applications
  • Ideal alternative to standard oil sealed rotary vane pumps

Note

N/A

  • Standard voltage for three phase pump is 208-230/460V 3ph 60Hz.
  • Standard voltage for single phase pump is 115/230/1ph 50/60Hz or 115V/1ph 60Hz or 230V/1ph 60Hz
  • All pumps available in 50Hz frequency and with other voltages.
Specifications subject to change without notice.
