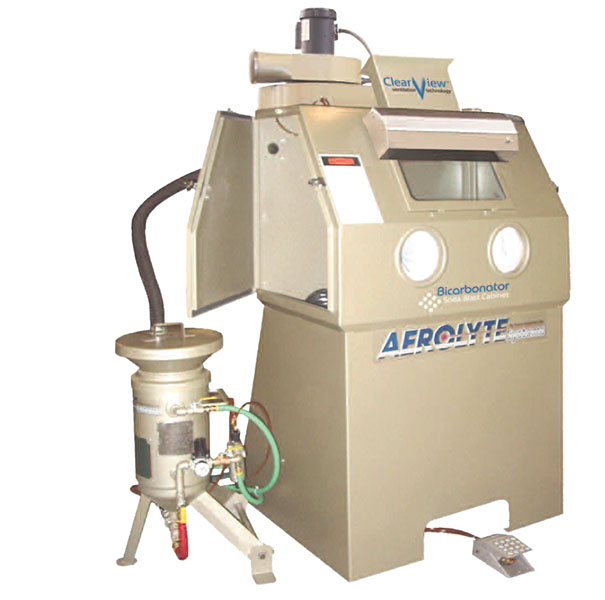

The Bicarbonator pressure blast cabinet, model PSB 2342-600, is designed for use with sodium bicarbonate media for cleaning and paint stripping. Soda media is soft, making it ideal for cleaning without altering or etching delicate surfaces. Soda media is water-soluble, non-toxic, and non-hazardous, simplifying its removal and disposal. Parts with internal cavities are easily rinsed clean. This model is for intermittent blasting, up to two hours per day. For higher-production soda blasting, Aerolyte can configure a pressure cabinet to suit your operation.

Unit of Measure

Financing

Approve Payments

 N/A

Finance with Approve Payments

Complete System

Complete System

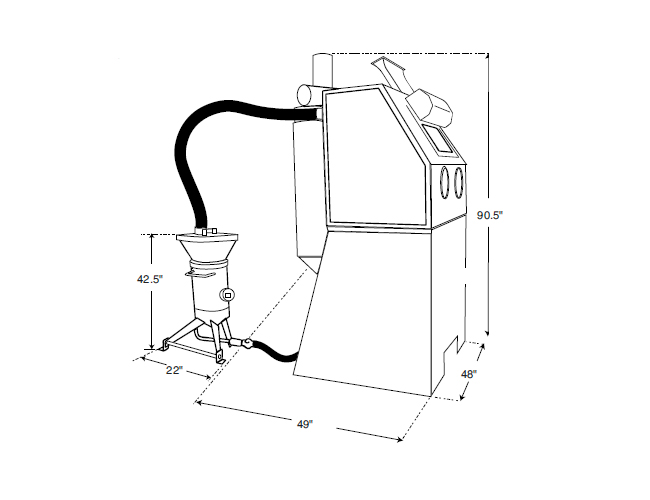

 N/A Actual space required depends on equipment configurations, and desired work flow. Allow additional work space for operator and maintenance access.

Cabinet and Dust Collector Depth

 N/A 49 in

Cabinet and Dust Collector Width

 N/A 48 in

Cabinet and Dust Collector Height

 N/A 90.5 in

Blast Machine and Hopper Size

 N/A 10 in

Blast Machine and Hopper Width

 N/A 22 in

Blast Machine and Hopper Height

 N/A 42.5 in

Cabinet

Working Chamber Width

 N/A 42 in1067 mm

Working Chamber Depth

 N/A 23 in584 mm

Working Chamber Height

 N/A 30 in762 mm

Window Width (Safety Glass)

 N/A 19.5 in495 mm

Window Height (Safety Glass)

 N/A 12.5 in317 mm

Nozzle

Size Number1 N/A 3

Nozzle Orifice

 N/A 3/16 in

Air Consumption at 80 psi (5.5 bar)

 N/A 1.08 m³/min38 ft³/min

Electrical Requirements

Power

 N/A 1 hp

Voltage

 N/A 115 V

Phase

 N/A 1

Power Supply Frequency

 N/A 60 Hz

Ordering Information

Stock Number

 N/A 27049

Specifications

Brands

 N/A Aerolyte®
Filtering Area2 N/A 120 ft²11.148 m²

Industry Standards/Certifications

 N/A American Society of Mechanical Engineers (ASME) ISO 9001

Replaces

 N/A Item# PSB 2342-600

Features

Safety

 N/A
  • Door interlock system interrupts blasting when either door is opened
  • Optional time-delay locking system keeps doors locked for predetermined time
  • Double-wall, insulated doors, reduce exterior noise
  • Full-opening doors with lift-off hinges maximize work chamber capacity and ease loading large parts
  • Full-length, neoprene-on-fabric gloves offer long wear life and operator protection
  • Dual 15-watt fluorescent lights illuminate the work chamber and stay cool

Productivity

 N/A
  • Patented ClearView™ targeted high-velocity ventilation technology provides exceptional visibility
  • Unique air logic system maximizes air and media flow for blasting
  • ASME-code pressure vessel, 0.5 cu ft capacity, with 1/2" piping
  • Reverse-pulse cartridge dust collector immediately evacuates airborne dust and traps 99.7% of dust down to 0.5 micron
  • Robust, adjustable chrome latches seal doors tight through years of service

Convenience

 N/A
  • Tilt-out window allows tool-free glass changes in minutes
  • Easy-to-reach pressure regulator, gauge, and electric switch
  • Built-in air gun conveniently located inside allows part blow-off inside cabinet

Clean Strip Paint

N/A

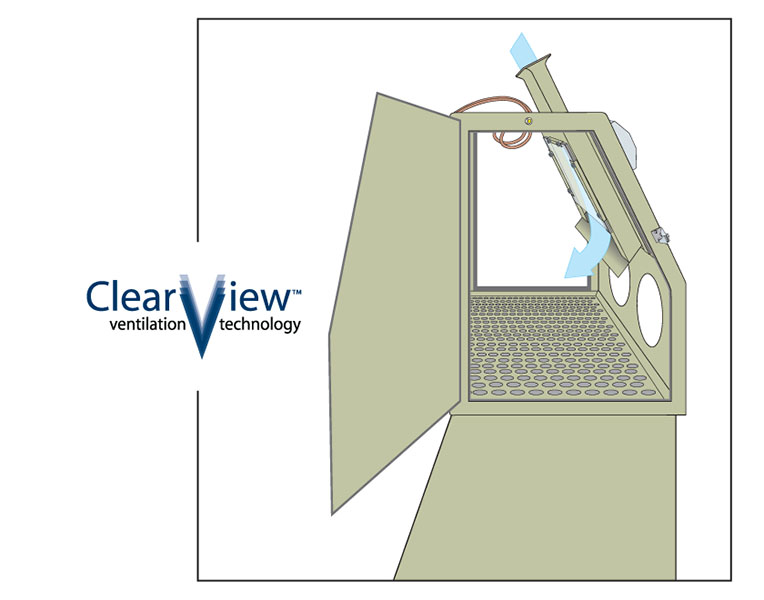

Unique patented ClearView™ ventilation technology provides outstanding visibility during soda blasting, unlike any other cabinet on the market.

Common Applications

N/A

  • Cylinder heads
  • Engine parts
  • Transmission valve bodies
  • Oil pumps
  • Gearbox bodies and parts
  • Carburetor bodies and parts
  • Fiberglass components
  • Automotive body parts
  • Aircraft parts
  • Delicate substrates

Dust Collector

N/A

The 600 cfm reverse pulse cartridge dust collector traps 99.7% of dust down to 0.5 micron, allowing non-stop, high-production blasting. The polyester-cellulose cartridge is automatically pulse cleaned for maximum filter efficiency. The cartridge can be replaced in minutes.

Note: Parts must be free of oil, water, grease, and other heavy contamination that could clog the dust collector filter.

System Description

N/A

  • Model Bicarbonator PSB 2342-600
  • Heavy-duty 14-gauge cabinet shell, all-welded construction
  • Safety-glass view window, 12" x 19.5"
  • Fluorescent lighting with dual 15-watt bulbs
  • Heavy-duty industrial-quality adjustable chrome latches
  • Unique air-logic system to maximize efficient use of compressed air
  • ClearView™ ventilation provides optimal work chamber visibility
  • Cabinet-mounted 600 cfm reverse-pulse dust collector with 1 HP motor
  • Dust drum, removable for easy material disposal
  • 0.5 cu ft capacity ASME-code pressure vessel

Popular Accessories

N/A

  • Time-delay Door Locks
  • Turntable
  • Table/work tray with internal track
  • HEPA Filter

Note

N/A

The Bicarbonator Soda Blast Cabinet incorporates technology covered by US Patent No. 5177911.

Clemco is committed to continuous product improvement.
Specifications are subject to change without notice.
  • 1 Cabinet is furnished with an ASV-3 stainless steel nozzle.
  • 2 Dust concentration in exhausted air is nominally 5.0 mg/m³.
