Oil-Free Technology
Self-Contained Liquid Ring
The Airtech® 3AL vacuum pump uses proven liquid ring technology in an air-cooled self-contained package, offering reliable operation with only a small amount of make-up water needed for some applications.
A low maintenance alternative to rotary vane, screw and piston type vacuum pumps that is especially suitable for high water-vapor applications and which reduces maintenance to a minimum.
Self-Contained Liquid Ring
The Airtech® 3AL vacuum pump uses proven liquid ring technology in an air-cooled self-contained package, offering reliable operation with only a small amount of make-up water needed for some applications.
A low maintenance alternative to rotary vane, screw and piston type vacuum pumps that is especially suitable for high water-vapor applications and which reduces maintenance to a minimum.
Unit of Measure
Specifications

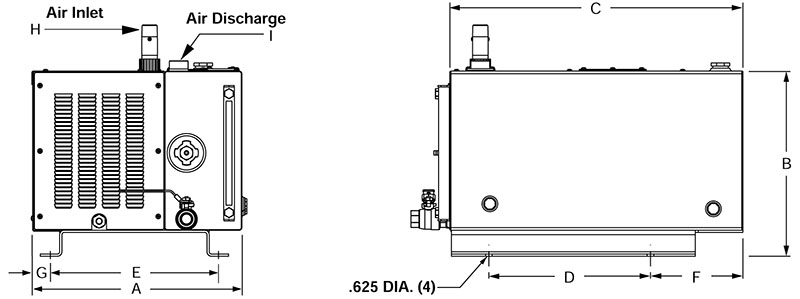

Dimension A |
N/A 21.0 in |
Dimension B |
N/A 18.8 in |
Dimension C |
N/A 30.0 in |
Dimension D |
N/A 17.8 in |
Dimension E |
N/A 19.5 in |
Dimension F |
N/A 9.0 in |
Dimension G |
N/A 0.8 in |
Air Inlet H (Male National Pipe Thread (MNPT)) |
N/A 1.5 in |
Air Discharge I (Female National Pipe Thread (FNPT)) |
N/A 1.5 in |

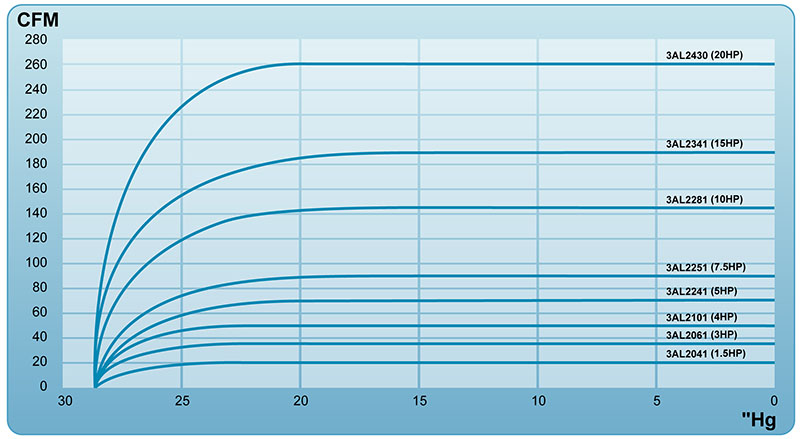

Flow Rate |
N/A 33 ft³/min |
Performance
Rated Power |
N/A 3 hp |
Speed |
N/A 3450 rpm |
Voltage Range |
N/A 208-230 V460 V |
Electrical Frequency |
N/A 60 Hz |
Maximum Current |
N/A 4.4 A7.6 A |
Sound Level |
N/A 70 dBA |
Weight |
N/A 150 lb |
Features
Features |
N/A
|
